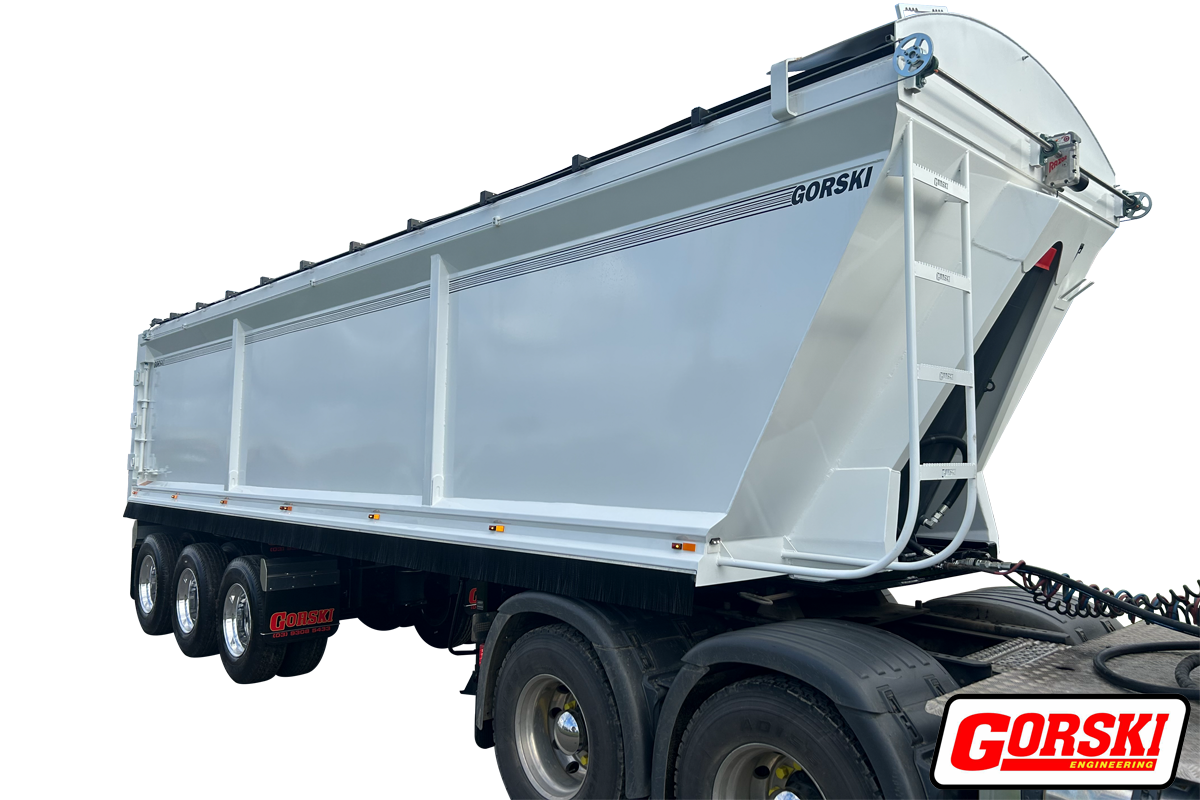

NEW GORSKI 3 AXLE SEMI TIPPING TRAILER "Demo Spec Airbag"  COMPLETE:

BODY:
"Gorski Premium" Body up to 38m3 approx.
9.600m long x 1.800m high approx.
- Body Dimensions subject to final engineering design and approval

- 5mm QT450 HARDOX side sheets with internal pressed sides and pressed front sheet.
- 8mm QT450 HARDOX Floor sheet
- 5mm QT450 HARDOX  Tailgate with 50mm 1-way DEMO Swing kit, manual operation
- "Gorski Premium" full length pressed top rails & splash guards
- Angle welded to top of side walls and tail door
- "Gorski Premium" Fabricated Heavy Duty Main bearer 200mm
- Shovel rack fitted to front of body with ergonomic steps front of body
- Spreader Chains connected to tailgate
Included: 175mm Spray Suppressant full length of body

RUNNING GEAR:
"Gorski Premium" heavy duty chassis fitted with:
-              TMC Drum Brake Axles (10 Stud 285mm)
-              TMC LMV Light-weight Airbag Suspension
-              ABC EBS Brake Control System
Compliant with ADR38

Please note:  Dump Valve Kit operation through tailgate included on all Semi Trailers

RIMS & TYRES:
11R22.5 Tyres fitted to Aluminium Rims (Aluminium polished outers and Aluminium machined inners).
Compliant with ADR24

SKIDPLATE & KINGPIN:
Gorski “Premium” fabricated10mm Skidplate and 50mm Demountable Kingpin Quick Release fittings to match truck; male duomatic air couplings, 7 pin electric plug and 20mm hydraulic coupling

LANDING LEGS:
Jost A400 2 Speed Landing Legs comes with internal gear box (and 5 year warranty)

HYDRAULICS:
Hidromas 5 Stage telescopic hoist w/ chrome plated stages, 60T approx

LIGHTING:
LED Side Lamps x7 per side, LED Rear Lamps x4 per side with regulation reflectors, 2x reverse spots, licence plate lamp and reverse squawker.
- "Gorski Premium" Aluminium Light Brackets fitted to heavy duty, 50x50x5mm RHS.
Compliant with ADR 13

PAINT:
Body ("Gorski" white) and Chassis Rails (Black) finished using hi-grade industrial paint (2 Pac).  Side/Rear Gorski decals also included, as well as regulation Rear Marker Plates and safety stickers.
***Please note: to match colour to your truck cabin in a specific white may incur an additional fee.  It is also important to mention that we do not paint inside the tipper body.

TARP:
Razor electric remote control tarp kit, Black PVC
**Please note:  The premium amperage for supply from vehicle to your Razor Tarp Motor is 5 Amps.  If your prime mover is unable to supply this amperage you may need your auto elec for further works after delivery.

ADDITIONAL EXTRAS:
Please see list of all upgradeable extras

REGISTRATION:
We can only register your new trailer within our own state Victoria.  Please notify us if you would like to add Victorian Registration and Stamp Duty.  If you are living interstate, we can arrange a “Permit to Travel” to assist in getting your new trailer back to your home state.

PLEASE NOTE:  PHOTOS ARE TO BE USED AS A GUIDE ONLY





FURTHER INFORMATION
Inspections of our products is always welcome at Gorski Engineering, Somerton Victoria.
Contact us at Gorski Engineering on 03 9308 5433 if you have any further questions.
Note: This 3 Axle Semi Tipping Trailer Demolition Spec  is sold as a New item.
We describe all SemiTrailers to the best of our ability. Photos form part of all descriptions.
It remains the buyers responsibility to ensure equipment is in a safe working order before use.
Not what you are looking for?  Please give Gorski Engineering, Somerton  Victoria a call as we may be able to help you out on that hard to find item.

WORKMANSHIP GUARANTEE
We are proud to use only the best materials for our work, which are applied by skilled and experienced staff. We guarantee our workmanship will continue to look great and perform as intended.
We provide a 12 month warranty on structural work, parts and equipment. All work is to be carried out by Gorski Engineering P/L or a repairer authorized and nominated by us. Vehicles left at owners risk, we do not accept any liability for loss or damage.

ABOUT US
Gorski Engineering Pty Ltd, Somerton, Victoria is a proudly Australian owned company, supplying the tipper industry with quality products.
Gorski Engineering is a family run business, with 45 years combined experience in the industry.
We are backed by decades long partnerships with our suppliers, ensuring only the toughest parts from authorized and genuine part suppliers.

Our current product range consists of the following:
•        Aluminium or Hardox Tipping Bodies
•        Dog Trailers - 2, 3, 4 and 5 Axle
•        Semi Tipping Trailers - 2, 3 Axle
•        Repairs & Spares

Gorski Engineering Pty Ltd ACN 104 338 169 as trustee for Gorski Engineering Trust ABN 48 101 665 246 Somerton, Victoria is a GST registered Australian business and will supply a tax invoice with item on delivery/pickup.

SKU QT-ST3-DEMO-AIR
Brand Gorski Engineering
Shipping Weight 13000.0000kg
Shipping Width 2.500m
Shipping Height 4.000m
Shipping Length 9.600m
Shipping Cubic 96.000000000m3
Unit Of Measure ea
